Light Weight Transmission Fluid Exchange Machine DC12V Speed Adjustable

Transmission Oil Change Transmission Fluid Exchange Machine 150W With Light Weight

Operation Notice

1) It is PROHIBITED to add automatic transmission oil or protective agent from the filler port when the machine is running.

2) The used oil tank and new oil tanks of the machine must KEEP EMPTY without any oil when the machine is kept for storage. After the machine completes its work, the used oil should be discharged to other containers or drained immediately.

3) When the machine is running, place the machine in a horizontal place to ensure that the machine will pump all the oil in the tank.

4) Except for emergency situations, please DO NOT TURN OFF the engine and restart the machine in the process of equal exchange of transmission oil. This is to prevent the restart of the engine from affecting the accuracy of equal exchange.

5) The professional operator must monitor the oil change process closely.

Working principle

The automatic gearbox uses a gravity sensor to measure the weight of the old and new oils, then calculates the flow rate of the new and old oils based on the unit time, and adjusts the speed of the oil pump with the new oil to obtain the same flow rate as the old oil. Ensure that the amount of new and old oil is equal to achieve the same amount of exchange.

Operation Channel

Function

1. One-touch calibration function of intelligent electronic scales.

2. Visual display the radiator oil pressure of gearbox.

3. Special connectors suitable for different European, American, Asian automobiles.

4. Effectively solve the problem of incomplete replacement of transmission oil manually, improve the performance of the transmission, and extend the service life of the transmission.

transmission flush equipment

automatic oil change machine

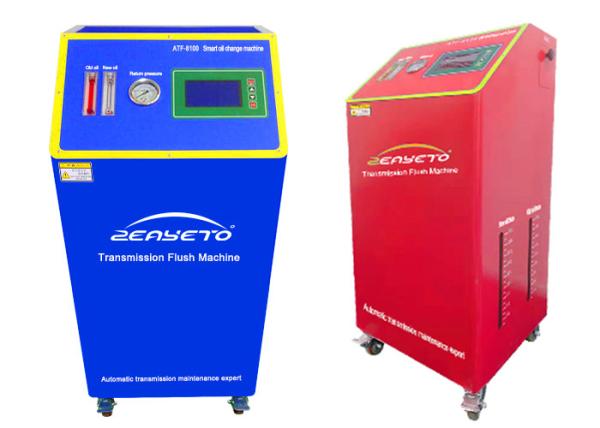

Light Weight Transmission Fluid Exchange Machine DC12V Speed Adjustable Images
